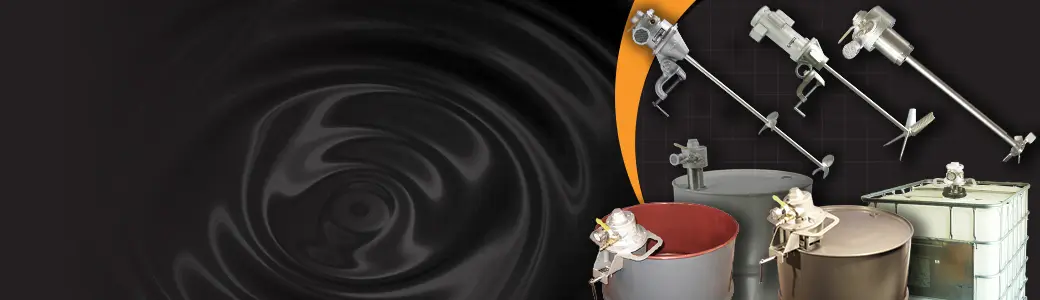

55-gallon drum mixers are the answer to a need to mix and suspend products throughout the product supply chain. In particular, for closed-head 55-gallon drums that have a 2″NPT port, we offer our bung mount mixer. This drum mixer is specifically designed to enter a closed-head drum tank and provide increased mixing via collapsible impellers.
Dynamix agitators and mixers are selected and configured according to your needs. These images and configuration options are only guidelines for your final mixer selection.
In order to provide our Solution Assurance we must engineer your mixer to pump the fluid properly. This pumping approach to mixing requires a larger diameter impeller. Often, barrels and drums do not allow for large-diameter impellers, so we designed a collapsible impeller. This impeller can enter the 2″ NPT port of the barrel or drum.
MOTORS HP RANGE – 1/4 TO 2 HP
Air, electric, variable speed, explosion-proof, and more
GEAR REDUCTION – DIRECT, 5:1
Low RPM mixing with substantial torque available
MOUNTING – OPTIONS
2-inch NPT, also known as a bung mount Multiple mounting options for open and closed-head drums
IMPELLERS – FIXED OR COLLAPSIBLE Collapsible impellers offer increased mixing through 2″ opening
Optimal mixing in a 55-gallon drum requires our 4-bladed collapsible impellers. These drum mixer impellers enter through the 2″ NPT openings of the 55-gallon drum. Our collapsible impellers expand during drum mixing and collapse after for easy removal. This ensures that the correct type of mixing quality will be achieved.
The ITM plastic tote mixer is part of a new class of tote mixers. This plastic tote mixer was made possible by several Dynamix innovations. Our impeller technology, mixer mount, and dynamic coupling have enabled the plastic tote mixer to become a process vessel and key quality control tool. … Learn More
Tote agitators can be used when batches are too small for processing in a large steel tank. ITM tote agitator designs for steel totes can be designed to make small-batch processing possible…. Learn More
