Tote Mixers
Customized mixer solutions for your needs
250 To 300 Gallon Tote Tank Mixers
Dynamix carries a wide variety of tote mixers and tote agitators that are generally used for mixing between 250 and 300 gallons. However, we are known best for our Integrated Tote Mixer (ITM) because of its design and the type of mixing it enables.
By applying the ITM tote mixer design, we can offer a performance guarantee and convert your tote from a shipping vessel to a process tank. The Integrated Tote Mixer uses the first 4-bladed collapsible impellers in this market. This impeller technology allows our engineers to apply the torque principles of larger industrial agitators into a tote and guarantee its performance.
This tote tank mixer fully encloses the tote to ensure the product cannot be contaminated during the mixing process. The dynamic coupling also allows for increased portability, installation, and removal, as a single drive can be attached to different tote by one person.
If you’re interested in discussing prices or the benefits of these tote tank mixers in more detail, we’d be happy to help. Get a quote below or call Dynamix today. we can find the best mixer configuration for your application and budget.
ITM - Integrated Tote Mixer
custom Design it with us & optimize your mixer for your application – Get our process guarantee
Call Dynamix today and we can find the best mixer configuration for your application and budget.
BTM - Bridge Tote Mixer
ETM - Economy Tote Mixer
Conventionally, the diameter of a mixer’s impeller is limited by the small opening in a tote. Small openings are not a limitation with Dynamix’s collapsible impeller.
REQUEST A QUOTE

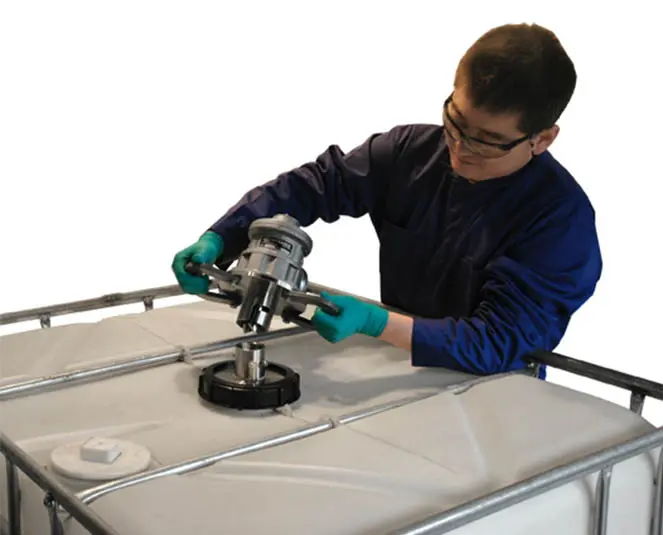

True portability that can be installed by one person and enabling you to address uniformity issues on site, or your client’s site.
REQUEST A QUOTE
Dynamix’s dynamic drive coupling protects your product from exposure and cross-contamination.
REQUEST A QUOTE
Call Us Today 1.877.331.0045 or Request a Quote
ITM Series - (integrated tote mixers)
QUALITY CONTROL WITH INTEGRATED TOTE MIXERS
The Integrated Tote Mixer is a shift in how mixers are selected for totes or IBCs. Our impeller technologies enable our team to select a mixer that will perform for you according to your application. This type of personalized approach is not common in an industry that tries to offer standard “off the shelf” mixers for totes or IBCs, but we want to go the extra mile to ensure you get the most out of our tote tank mixers.
With this technology and our custom approach, we will make sure your tote becomes a process vessel that helps you control the quality of your mixing.
The line of ITMs, and the innovations it embodies, is the result of years of designing mixers for unique tote applications.
Check out the linked videos for further details or click the “request a quote” button to find one size to your mixing needs.
Custom Design it with us & optimize your mixer for your application – Get our process guarantee
view our catalog of economy tote mixers (ETM) & make a quick purchase
Process Guarantee is not available for a quick purchase item.
review customizable integrated tote mixers (itm) model selection
Work with our applications engineers to find a customized mixer solution
ITM TOTE MIXERS - mounting options and impeller options
DYNAMIC DRIVE COUPLING FOR TOTE MIXERS
Our Integrated Tote Mixer design allows you to easily re-configure the mixer by matching the drive and agitator segments. This means you can use the same drive across multiple totes or applications, and since the two components are designed to attach (and detach) without using tools or brackets, you can now assemble the tote mixer to process in seconds. This eliminates product cross-contamination by sharing the drive segment across totes with different, independent agitator segments, which will potentially reduce maintenance and equipment costs.
FOUR-BLADED COLLAPSIBLE IMPELLERS
In the past, using larger impeller blades for mixing in a tote has been a challenge for most applications. At Dynamix, we’ve designed collapsible impellers to fit through the small openings of the totes used as mixing vessels. For example, our 4-bladed collapsible impellers allow blades of up to 20 inches in diameter to fit through the small openings of a tote, creating the controlled mixing you would expect from a larger mixer. Overall, properly sized blades help the process manager achieve better product quality, mixer performance, and energy efficiency.
TOTE MIXERS FOR STAINLESS STEEL AND PLASTIC TOTES

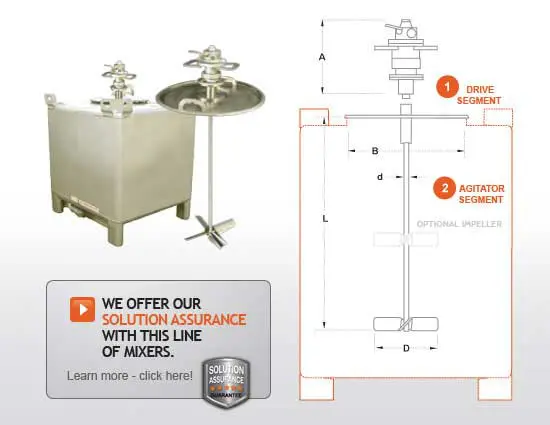

STAINLESS STEEL TOTE MIXERS
Mixers for stainless steel totes enable portable quality control for your product. Originally designed for the automotive industry, the ITM stainless steel tote mixer is now increasingly utilized in other industries to increase quality control and economies of scale.

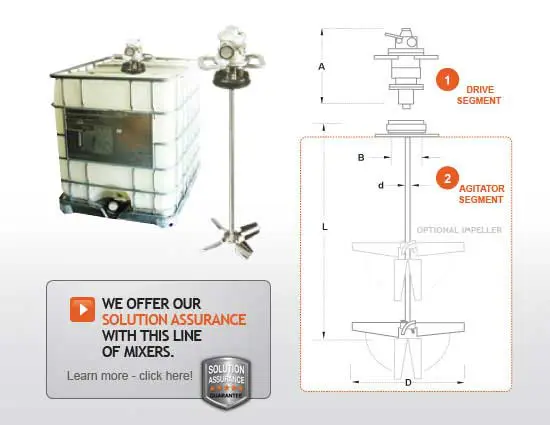

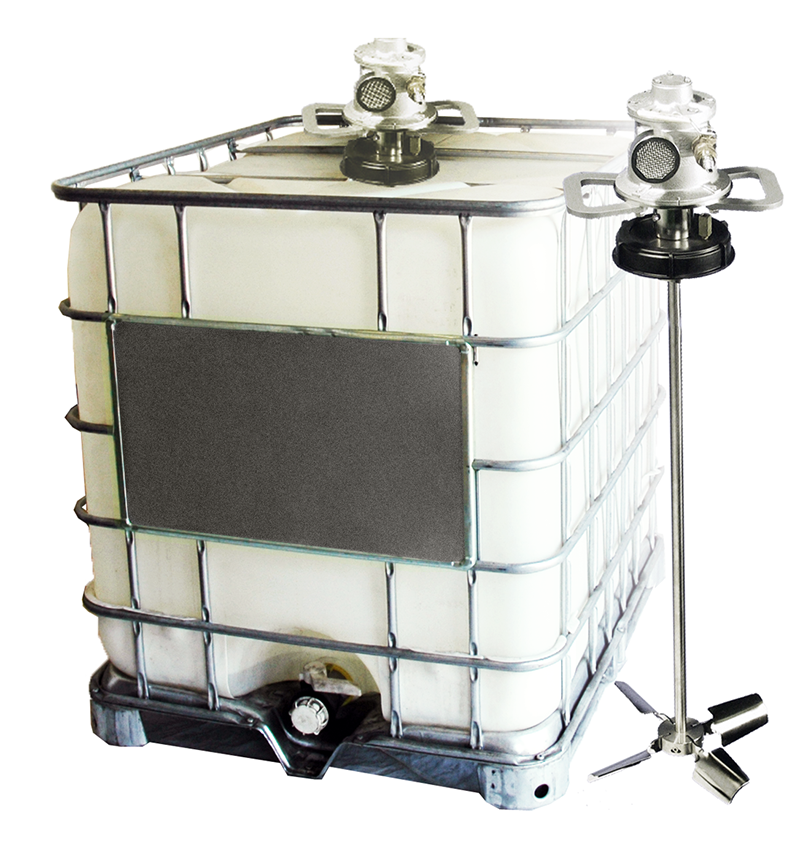

PLASTIC IBC TOTE MIXER
The ITM plastic tote mixer is part of a new class of mixers for totes. Our plastic tote tank mixer is made possible by several Dynamix innovations: our impeller technology, mixer mount, and dynamic coupling. Such innovations enable the plastic tote mixer to become a process vessel and key quality control tool.
Testimonials
I am a water plant superintendent and I use two chemicals that are mixed together (H.M.O.) which is injected into vertical filters to reduce natural radium that comes from ground water. The chemical has to be mixed 24 hrs a day. Prior to these mixers I had good reduction but after using Dynamix I have been getting non detects on my testing. Be prepared Dynamix put a lot of science into my processes which included sizing of tanks, viscosity of chemical, measuring of tanks, and many pictures to insure proper application was achieved. I have three mixers in process and I think it has been around four years when I started using Dynamix and my original mixers are still running perfectly when the other mixers would not last more than one month.
Dynamix has some of the best account managers I have worked with. When a shipment ended up stuck in customs, Dynamix did everything to move it out and get it on its way to us, and communicated every step of the way. Very thankful!!!
Using information about our material, container, and purpose, Dynamix continually chooses a mount, drive, and impeller that are appropriate for the job with friendliness and ease, even after changes are made many times to our plans and purpose.
